RADaptor-1

$38.00

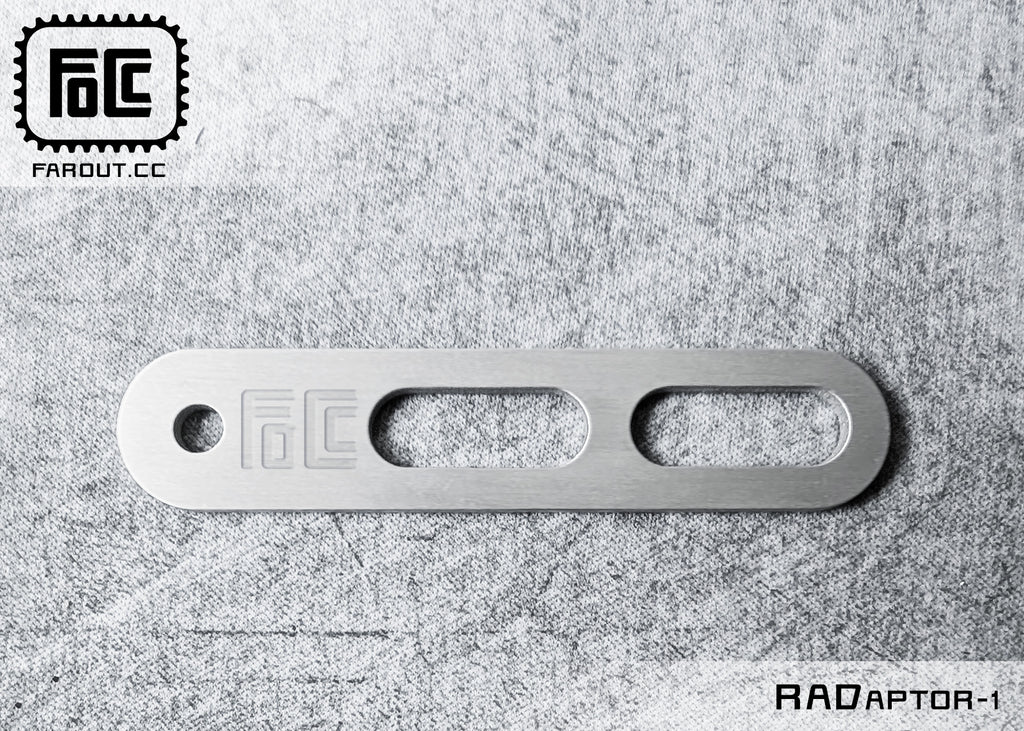

RADaptor-1

Name: RADaptor-1
Brand: FOCC
Price: 38.00 USD
Availability: InStock

$38.00

RADaptors - Your Solution To Cargo Clearance Problems!

RADaptors are rear rack adapters that provide the additional clearance some bikes need in order to carry cargo in the pannier and/or trunk bag locations without interfering with the rider's heels or saddle. They are designed to fit Kona bikes and fit other bikes as well.

Sold in pairs.

Hardware Included.

To learn more about RADaptors, please visit this page.

Rack Attachment Points	One
Rack Downward Change	75mm*
Rack Rearward Change	100mm ± 15mm*
Load Rating	60 pounds (rack cargo)
Material	6061 AL
Finish	Plain / Silver
Weight	20g per pair
Origin	Marin County, USA

* Based on Kona Unit frame, may vary on other frames.

Compatibility with Your BIKE

Before purchasing, make sure you can answer "YES" to these three points...

Your bike frame is metal (Steel, Aluminum, Titanium).
The rear dropouts on your bike utilize two M8 (8mm) bolts on each side.
The RADaptors will be able to sit flush against the bike frame without anything interfering as pictured below...

(Drive Side)

(Non-drive Side)

Compatibility with Your RACK

Racks are made in many different sizes — it's important to measure your rack — and using RADaptors will lower the racks a substantial amount. Take two quick measurements...

First, measure the vertical distance between the lower rack mount and the bottom of the rack platform, as pictured below.
Now, measure the vertical distance between the center of your dropout bolts to the top of the tire.
CLEARANCE between rack and tire (with RADaptors installed) is found by subtracting the second measurement from the first.
The CLEARANCE you calculated above must be positive and preferably half an inch to an inch (12-25mm).
NOT ENOUCH CLARANCE? RADaptor-2 may help. Its upper mounting point adds an inch (25mm) more clearance.
